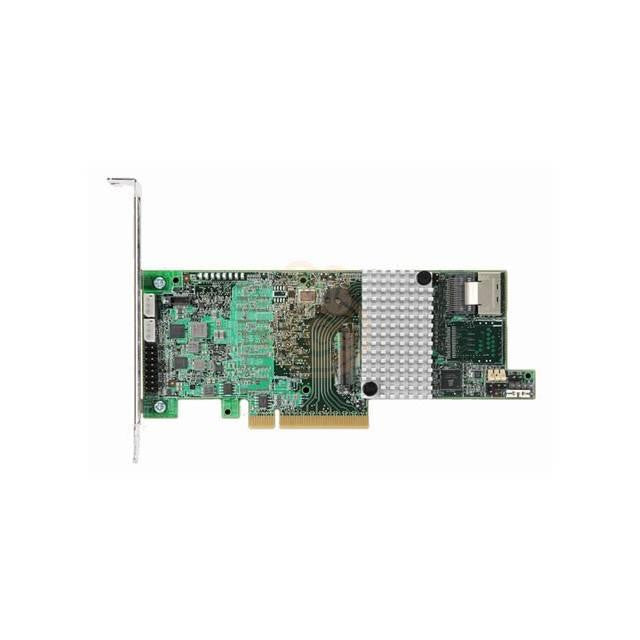

Broadcom LSI MegaRAID SAS LSI9266-4i Sgl 4-port 6Gb-s PCI-Express 2.0 SATA+SAS RAID Controller
Specifications
- Mfr Part Number: LSI00305 (LSI9266-4I SINGLE )
-
Features:
- Four internal SATA+SAS ports
- 6Gb/s throughput per port
- LSISAS2208 Dual Core ROC
- 800MHz PowerPC
- MD2 Low profile (6.6" X 2.536")
- x8 PCI Express 2.0 host interface
- 1GB DDRIII cache (1333MHz)
- Optional CacheVault Module (LSICVM01)
- Optional battery backup unit (LSIiBBU09)
- Connect up to 128 SATA and/or SAS devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
- Ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
- Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
- CacheVault technology option for greener, lower total cost cache protection
- Support for MegaRAID CacheCade Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache
- Meets high I/O transaction demands of database and datacenter applications
- Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
- Connectors: 4x SAS SFF-8087 internal connectors
- Device Support: Up to 128 SAS and/or SATA devices
- Host Bus Type: PCI-Express 2.0 x8 compliant
- Data Transfer Rates: Up to 6Gb/s per port
- I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
- Cache Memory: 1GB DDR3-1333 SDRAM integrated
-
RAID Data Protection Features:
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Auto resume after loss of system power during array rebuild or reconstruction (RLM)
- Single controller Multipathing(failover)
- Load balancing
- Configure stripe size upto 1MB
- Fast initialization for quick array setup
- Check Consistency for background data integrity
- SSD Support with SSD Guard
- Patrol read for media scanning and repairing
- 64 logical drive support
- DDF compliant Configuration on Disk (COD)
- Up to 64 TB LUN support
- S.M.A.R.T support
- Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
- Enclosure management- SES (inband); SGPIO (sideband)
- Operating Voltage: +3.3V, +12V
- MTBF (Calculated): 1,031,514 hours
- RAID Management (MegaRAID Management Suite): MegaRAID Storage Manager; MegaCLI (command-line interface); WebBIOS
- OS Support: Microsoft Windows Vista/ 2008/ Server 2003/ 2000/ XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more
- Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
- Form Factor: MD2 Low Profile;
- Dimensions: 6.600 x 2.536 inch
