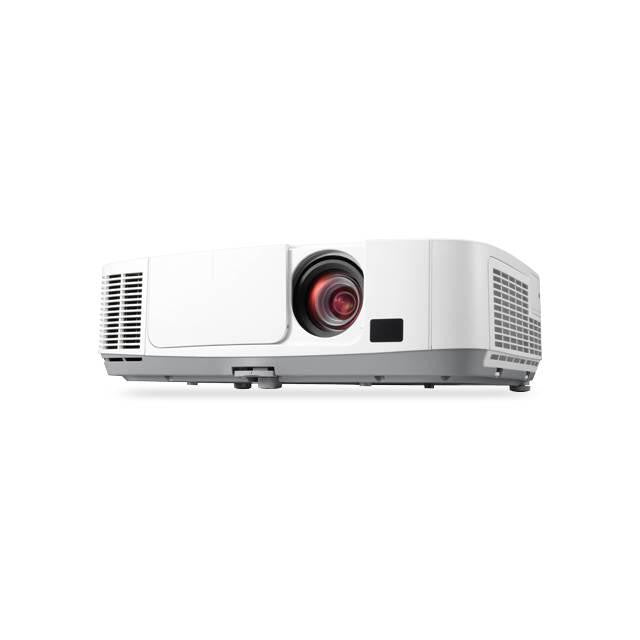

NEC NP-P401W 4000 Lumens LCD WXGA Projector

Specifications

• Mfr Part Number: NP-P401W
• Optical:
  • Display Technology: 0.59" LCD w/ MLA
  • Resolution:
    • Native: WXGA 1280 x 800
    • Maximum: UXGA 1600 x 1200
  • Light Output (Lumens): 4000 normal / Eco = approx. 67% of normal mode
  • Contrast Ratio (up to): 4,000:1
  • Lamp Type: 240W AC / 160W eco
  • Lamp Life (up to): 4000 hours (normal) / 6000 hours (eco)
  • Screen Size (diagonal): 25.0 ~ 300.0 inch / 0.64 ~ 7.60 m
  • Throw Ratio: 1.3 ~ 2.2
  • Projection Distance: 2.3 ~ 47.8 ft / 0.69 ~ 14.60 m
  • Projector Angle: 0° ~ 9.8° (tele) / 0° ~ 16.5° (wide)
  • Lens:
    • Zoom: 1.7
    • Focus: Manual
    • F-number, f-number: F=1.7 ~ 2.1, f=17.4 ~ 29.0mm
  • Keystone Correction: Manual +/- 30°
• Signal Compatiblity/Connectivity:
  • Scan Rate:
    • Horizontal: 15 ~ 100 kHz
    • Vertical: 50 ~ 120 Hz
  • Supported Video Standards: NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter - ADP-CV1E)
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA
  • Macintosh Compatibility: Yes
  • Input/Output Terminals:
    • RGB1(Analog): VGA 15-pin D-sub
    • RGB3(Digital): HDMI w/ HDCP
    • RGB4(Digital): USB A type
    • Video 1: RCA
    • Video 2: S-Video
    • Audio 1: L/R RCA (shared by video sources)
    • Audio 2: 1/8 inch stereo
    • Audio 3: 1/8 inch stereo
    • Monitor Out:  VGA 15-pin D-sub
    • Audio Out: Yes (variable)
  • Audio: 16W Speaker
  • External Control: RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN
  • Sync Compatibility: Separate Sync/ Composite Sync/ Sync on G
  • Networking: RJ-45 Monitoring
• Electrical:
  • Power Requirements: 100~240V AC, 50/60 Hz
  • Input Current: 3.9A / 1.7A
  • Power Consumption (Normal/ ECO Mode/ Standby/ Standby Power Saving): 325W / 231W / 10W / 0.2W
• Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
• Fan Noise: 36 dB (normal) / 30 dB (eco)
• Regulations: UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993
• Dimensions (WxDxH): 15.7 x 11.1 x 4.5 inch / 398.0 x 282.0 x 115.0 mm
• Weight: 9.0 lbs / 4.1 kg
