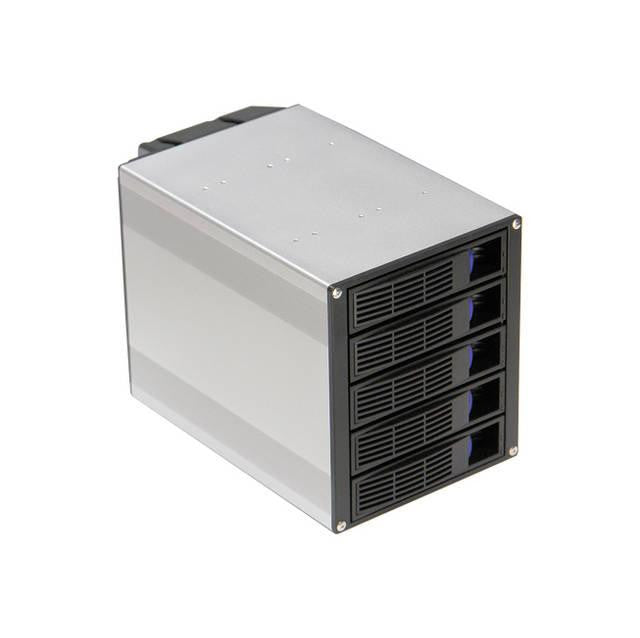

Norco SS-500 5-Bay 3.25 inch SATA-SAS Hot-Swap Module
Specifications
- Mfr Part Number: SS-500
-
Features:
- 5 Bay SATA/SAS 6G Hot Swap Module
- Steel material, RoHS compliance
- Electromagnetism shield design
- Support two redundant 4pin power connectors
- Patent balance handle - No skew in/out
- LED indicators
- Support hot swap
- Support all operating systems
- Ball bearing fan with air duct
- Supports RAID 0, 1, 5 functions (RAID card required)
- Drive Bay: Turn 3 x 5.25" drive bay to 5 x 3.25" hot swappable hard drive bay
- Interface: SATA to SATA; SAS to SAS
- Fan Sensor: Fan failure sensor
- Alarm: Overheating alarm
- Cooling System: One 80mm ball bearing fan with air duct provide excellent cooling air flow
- RAID: Supports RAID 0, 1, 5 functions (RAID card required)
- Power Connector: 4 pin molex power connector x 2
- Data Connector: SATA (I, II or III)/SAS 6G data port x 5
- Dimensions (WxLxH): 5.75 x 8.50 x 5.00 inch
- Weight: 5.0 lbs
