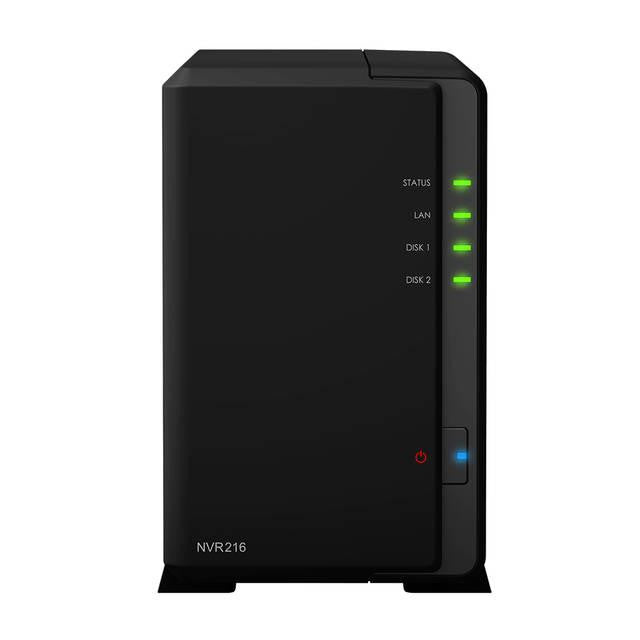

Synology Network Video Recorder NVR216 w- 4-Channel IP Cameras Support
Specification
- Mfr Part Number: NVR216 (4CH)
-
Hardware:
- Maximum Channel Number: 4 (including 4 Free License)
- CPU: Embedded NVR SoC (1.0 GHz, Dual Core)
- Memory: 1GB DDR3
- Drive Bays: 2x 3.5" or 2.5" SATA2/SATA3 HDD (Hard drive not included)
- Max Internal Raw Capacity: 16TB (2x 8TB HDD) (Capacity may vary by RAID types)
- External Interface: 1x USB 3.0 Port, 2x USB 2.0 Ports, 1x eSATA Port, 1x HDMI Port, 2x 3.5mm Audio Jacks (input/output)
- LAN: 1x Gigabit (RJ-45)
- Wake on LAN/WAN
- Fan: 1x (80 x 80mm) Fans
- Noise Level: 19.0 dB(A)
- Power Recovery
- Scheduled Power On/Off
- Power Supply Unit/Adapter: 60W
- AC Input Power Voltage: 100 ~ 240V AC
- Power Frequency: 50/60Hz, Single Phase
- Networking Protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)
- Security: IP auto-block, firewall, HTTPS connection
-
File System:
- Internal Drives: EXT4
- External Drives: EXT4, EXT3, FAT, NTFS, HFS+ (Read Only)
-
File Sharing:
- Max User Accounts: 1024
- Max Groups: 256
- Max Shared Folder: 256
- Windows Access Control List (ACL) Integration
- Utilities: Synology Web Assistant, Synology Assistant, Evidence Integrity Authenticator
-
Management:
- Auto DSM Upgrade
- Push Notification - Mobile Devices
- Email/SMS Notification
- Customized User Quota
- Customized Administrator/User Group
- Syslog Support
- DDNS Support
- IPv6 Support
- VLAN Support
- PPPoE
- Resource Monitor
- Connection Manager
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
-
Application:
- iOS/Android Application: DS File, DS Finder, DS Cam
- File Station, VPN Server, Security Adviser, Log Center, Network Backup, DSM Configuration Backup
- Supported Clients: Windows XP onwards, Mac OS X 10.7 onwards, Ubuntu 12 onwards
- Supported Browsers: Firefox, Internet Explorer 11 Onwards (exclude Microsoft Edge), Safari 7 Onwards
- Power Consumption: 14.14W (Access); 5.09W (HDD Hibernation)
- Certifications: FCC Class B, CE Class B, BSMI Class B
- Dimensions (WxDxH): 100.0 x 225.5 x 165.0 mm
- Weight: 0.9 kg
- Package Contents: Main Unit, Welcome Note, Accessory Pack, AC Power Adapter, AC Power Cord, RJ-45 LAN Cable
