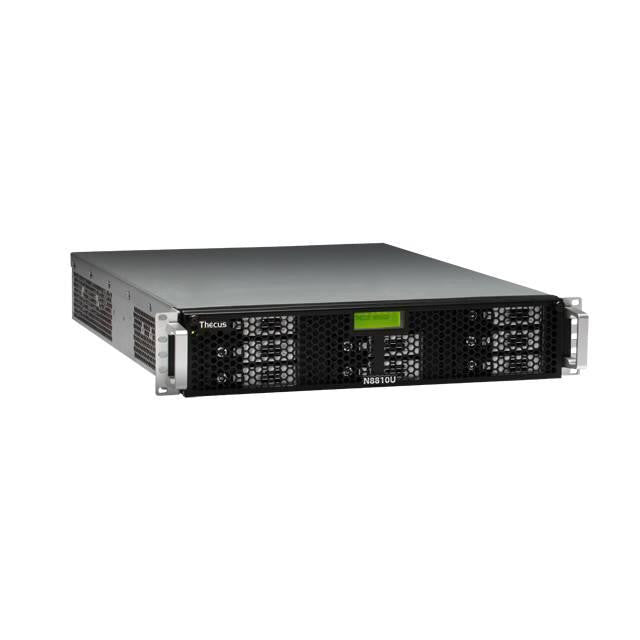

Thecus N8810U Intel Pentium G850 2.9GHz- 4GB DDR3- 2GbE- USB3.0- 8-bay 2U Rackmount NAS for SMB

Specifications

• Mfr Part Number: N8810U
• Hardware:
  • CPU: Intel Pentium G850 Processor (2.9GHz, Dual-Core)
  • Memory: 4GB DDR3 ECC
  • Interface:
    • LAN (PCI-Express): 2x RJ45 LAN Ports (Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X WOL supported)
    • USB: 2x USB 3.0 Host Ports (back), 6x USB 2.0 Host Ports (2 front, 4 back)
    • Disk: 8x SATA Ports (Internal)
  • LCM Module: Displays system status and information
  • Output: 1x HDMI Port (back), 1x VGA Port (back)
  • PCI Express x8 Slot: 1
  • Thermal/Fan Control: Thermal sensor on processor temperature
  • System Fan: 4x Hot Swappable
  • System Clock: Battery-backed up system clock
  • Power Management: Auto power on after shutdown due to power loss
  • Buzzer: Adjustable frequency alarm
  • Buttons: Power button LCM button (ENT, ESC, UP, DOWN)
• Software:
  • RAID:
    • RAID Modes - RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
    • Supports Auto-rebuild
    • Supports Hot-swap
    • Supports Hot Spare
    • Supports RAID Level Migration
    • Supports RAID Expansion
    • RAID Volume Encryption - AES256bit
  • Disk:
    • Power Management - Available spin-down on idle setting
    • Supports Bad Block Scanning
    • Supports SMART Info and SMART Test
    • Disk Roaming - Supports volume-based roaming to other Thecus NAS (Require ThecusOS 5 64 bit )
  • Network:
    • Configuration: Fixed IP address, dynamic IP address
    • Transport Protocols: TCP/ IP/ AppleTalk
    • File Protocols: SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
    • Link Aggregation: Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
    • TCP/IP: IPV6 & IPV4
    • Supports DDNS, SSH, UPnP, UPnP Port Forwarding
  • System Status:
    • System Monitor: Monitoring CPU, memory, network utilization and protocols access user count
    • Syslog Management: Send syslog to assigned location; Act as syslog server to receive log info from other systems
  • Data Access:
    • Client OS Support: Windows XP and after, Windows Server 2003 and after, UNIX/Linux, Mac OS X
    • FTP: Built-in FTP server with bandwidth control
    • Secure FTP: Built-in secure FTP server with bandwidth control
    • TFTP: Users can download and upload files with TFTP programs
    • Download Manager: BitTorrent download (via Transmission Module), NZB download (via NZB module)
    • Printer Server (IPP): Supports USB printers, Supports a wide range of IPP printers, Client can manage print tasks (list/delete) via web user interface
  • Data Backup:
    • Client Incremental Data Backup: Acronis True Image (OEM version)
    • Client System Disaster Recovery: Acronis True Image (OEM version)
    • Client Side Backup Software: Thecus Backup Utility (Windows/Mac OS X)
    • Data Burn:
      • Create files to ISO image and burn to optical disc
      • Create files to ISO image
      • Read ISO image from optical disc and write to NAS
    • Supports Mac OS X Time Machine
    • Data Guard: Remote Backup/Local Backup
  • Power Management: Supports Scheduled Power On/Off
  • Volume Management: Supports Multiple RAID; Multiple File System Selectable - EXT3/ EXT4/ XFS
  • File System:
    • Type: Journaling File System
    • Language: Unicode Support
    • Authorization (ACL): "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders
    • Supports User Quota
  • Mobile Applications (iOS/Android):
    • T-Dashboard: Mobile monitoring and administration (via module)
    • T-OnTheGo: Upload, download and stream multimedia
  • Capacity Expansion: Stackable - Can extend for 5 additional iSCSI volumes from other Thecus NAS
• Power Supply: 400W or more Redundant Power Supply (80 PLUS)
• Chassis: 2U Rackmount
• Certifications: CE, FCC, C-Tick, VCCI, BSMI, RoHS, WEEE, VMware
• Dimensions (WxDxH): 16.85 x 23.07 x 3.54 inch / 428.0 x 586.0 x 90.0 mm
• Weight: 35.01 Ibs / 15.88 kg (NAS only)
