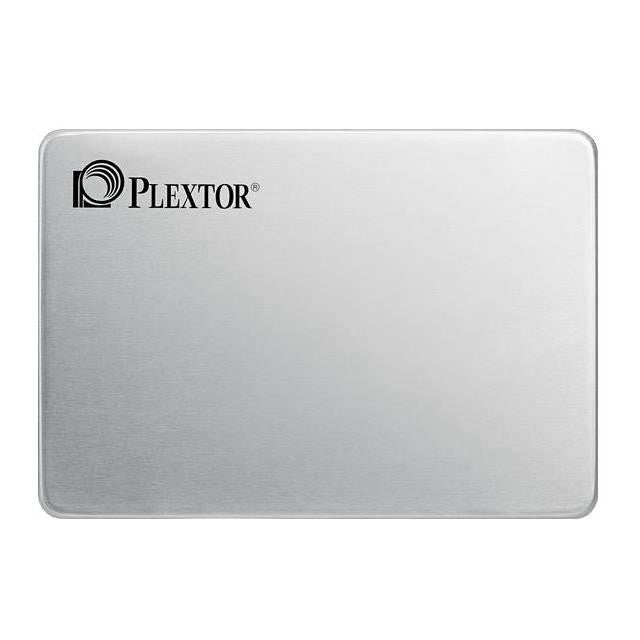

Plextor M7V Series 256GB 2.5 inch SATA3 Solid State Drive (TLC)

Specifications

• Mfr Part Number: PX-256M7VC

• Capacity: 256 GB

• Form Factor: 2.5 inch

• Interface: SATA 6Gb/s (Compatible with SATA 3.0/1.5Gb/s)

• NAND Flash: TOSHIBA 15nm TLC with Toggle mode

• Controller: Marvell 88SS1074B1

• DRAM Cache: 512MB DDR3

• Performance (Under Windows NTFS):
  • Sequential Read Speed: Up to 560 MB/s

  • Sequential Write Speed: Up to 530 MB/s
  • Random Read Speed (IOPS): Up to 98,000 IOPS
  • Random Write Speed (IOPS): Up to 84,000 IOPS
• Power Requirement: DC 5V 1.0A (Max.)
• Shock: 1500G (Max.) @ 1ms half-sine

• Vibration: 7 ~ 800Hz, 2.17Grms (Operating)

• MTBF: 1,500,000 Hours

• Endurance (TBW): 160

• Connectors:
  • Power: 15-pin SATA connector for DC 5V input

  • Data: 7-pin SATA connector

• Operating System Supported: Microsoft Windows OS / Linux OS / APPLE Mac OS

• Certifications: UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL

• Thickness: 7.0 mm
• Dimensions (WxLxH): 2.75 x 3.94 x 0.27 inch / 69.85 x 100.00 x 6.80 mm

• Weight: 2.12 oz / 60.0 g (Max)

• Package Contents: Quick installation guide, User's manua
