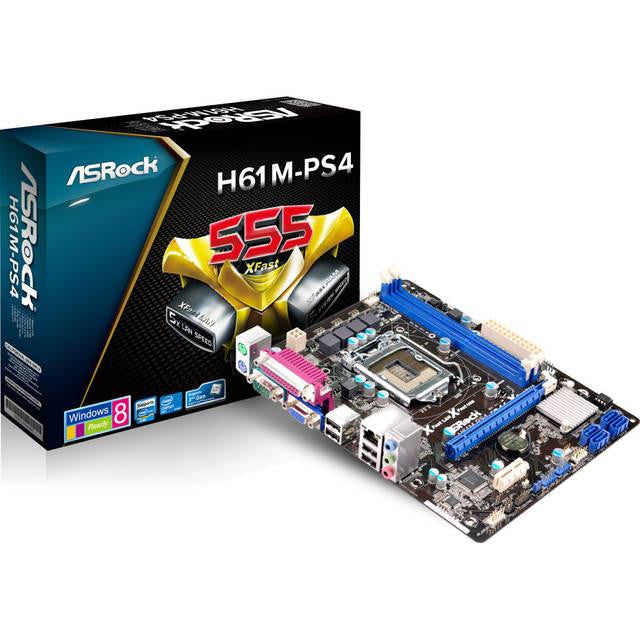

ASRock H61M-PS4 LGA1155- Intel H61- DDR3- A&GbE- MicroATX Motherboard
Specifications
- Mfr Part Number: H61M-PS4
-
CPU: LGA1155
- Supports 3rd and 2nd Generation Intel Core i7/ i5/ i3/ Xeon/ Pentium/ Celeron/ Processors
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series CPU
- Supports Hyper-Threading Technology
- Chipset: Intel H61
- Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot
- SATA: 4x SATA2 Ports
- Audio: Realtek ALC662 5.1-Channel High Definition Audio CODEC
- Video: Intel HD Graphics 2500/4000 w/ Intel Ivy Bridge CPU, Maximum Shared Memory of 1760MB and Intel HD Graphics 2000/3000 w/ Intel Sandy Bridge CPU, Maximum Shared Memory of 1759MB
- LAN: Realtek RTL8111E PCI-Express x1 Gigabit Ethernet Controller
- Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x Serial Port, 1x Parallel Port, 1x VGA Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector
- Form Factor: MicroATX
