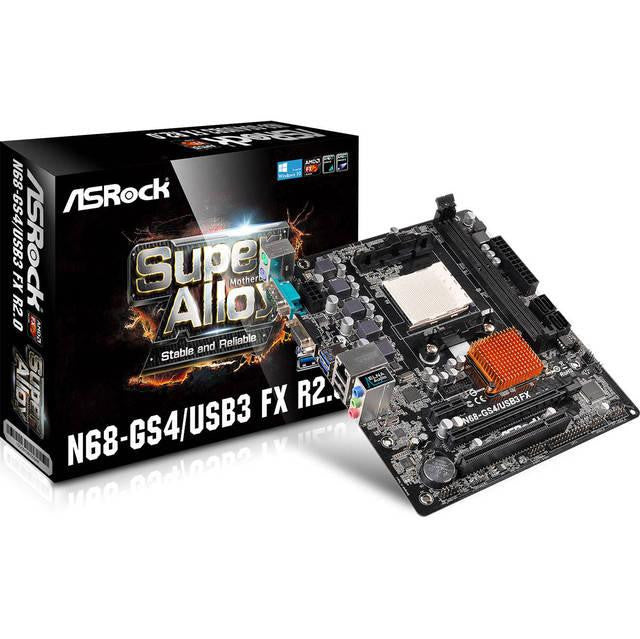

ASROCK N68-GS4-USB3 FX R2.0 Socket AM3+- NVIDIA GeForce 7025- DDR3- USB3.0- A&V&GbE- MicroATX Motherboard

Specifications

• Mfr Part Number: N68-GS4/USB3 FX R2.0

• CPU: Socket AM3+/AM3
  • Support AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron Processors

  • Supports 8-Core CPU

  • Supports 4 + 1 Power Phase Design

  • Supports UCC Feature (Unlock CPU Core)

  • Supports AMD's Cool 'n' Quiet Technology

  • Supports Untied Overclocking Technology

  • Supports Hyper-Transport Technology

  • FSB 1000 MHz (2.0 GT/s)

• Chipset: North Bridge NVIDIA GeForce 7025 & South Bridge nForce 630a

• Memory: 2x DDR3-1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB

• Slots: 1x PCI-Express x16 Slot, 1x PCI-Express x1 Slot, 1x PCI Slot

• SATA: 4x SATA2 Ports, Support RAID 0, 1, 0+1, 5, JBOD
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• Video: Integrated NVIDIA GeForce 7025 Graphics w/ 256MB Max Shared Memory

• LAN: Realtek RTL8211E Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x Serial Port, 1x RJ45 LAN Port, Audio I/O Jacks

• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: MicroATX, 8.7 x 7.2 inch / 22.1 x 18.3 cm
