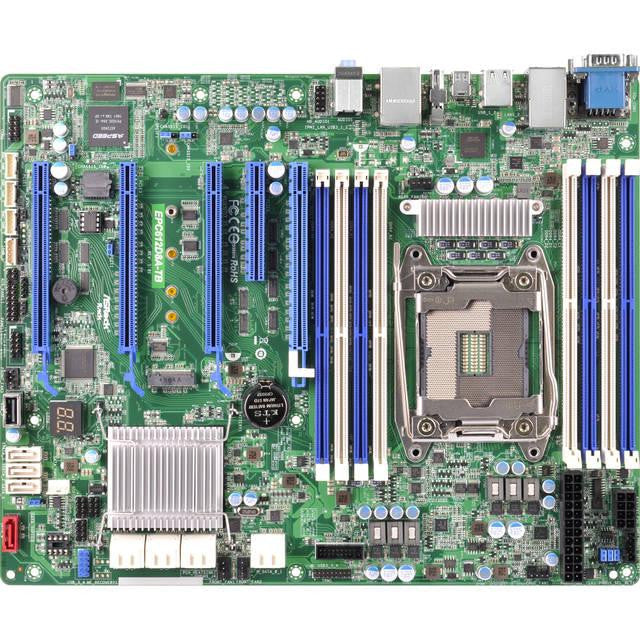

ASRock Rack EPC612D8A-TB LGA2011-v3- Intel C612- DDR4- SATA3&USB3.0- A&V&2GbE- ATX Server Motherboard
Specifications
- Mfr Part Number: EPC612D8A-TB
-
CPU: LGA2011-v3
- Supports Intel Xeon E5-1600/ 2600 v3 Series Processors
- Chipset: Intel C612
- Memory: 8x DDR4-2133/ 1866/ 1600 DIMM Slots, Quad Channel
- Slots: 4x PCI-Express 3.0 x16 Slots (run at x16/x0, x8/x8), 1x PCI-Express 3.0 x8 Slot (runs at x8 or x4), 1x Mini PCI-Express x4 Slot
- SATA: 10x SATA3 Ports (1x SATA DOM)
- Audio: Realtek ALC1150 Audio CODEC
- Video: Aspeed AST2400 Graphics w/ 16MB DDR3 Video Memory
- LAN: Intel i210 and Intel i217LM Gigabit Ethernet Controllers, 1x Realtek RTL8211E Dedicated IPMI LAN
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port, 1x Thunderbolt Port, 1x DisplayPort, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
