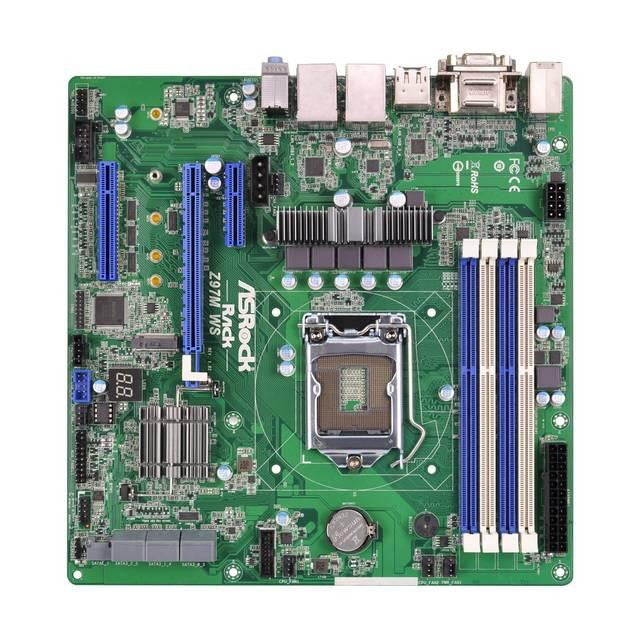

ASRock Rack Z97M WS LGA1150- Intel Z97- DDR3- SATA3&USB3.0- M.2- A&2GbE- MicroATX Motherboard
Specifications
- Mfr Part Number: Z97M WS
-
CPU: LGA1150
- Supports 5th/4th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Intel K-Series CPU
- Supports Intel Turbo Boost 2.0 Technology
- Chipset: Intel Z97
- Memory: 4x 240pin DDR3-1600/ 1333 DIMM Slots, Dual Channel, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x16 or x8), 1x PCI-Express 3.0 x8 Slot (runs at x0 or x8), 1x PCI-Express 2.0 x4 Slot
-
Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 13 & Intel Smart Response Technology
- M.2: 1x M.2 Port (Share with SATA Port4 & Port5)
- Audio: Realtek ALC892 High Definition Audio CODEC
- LAN: Intel i210 and Intel i217LM Gigabit Ethernet Controllers
- Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x DisplayPort, 2x RJ45 LAN Ports, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
- Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
