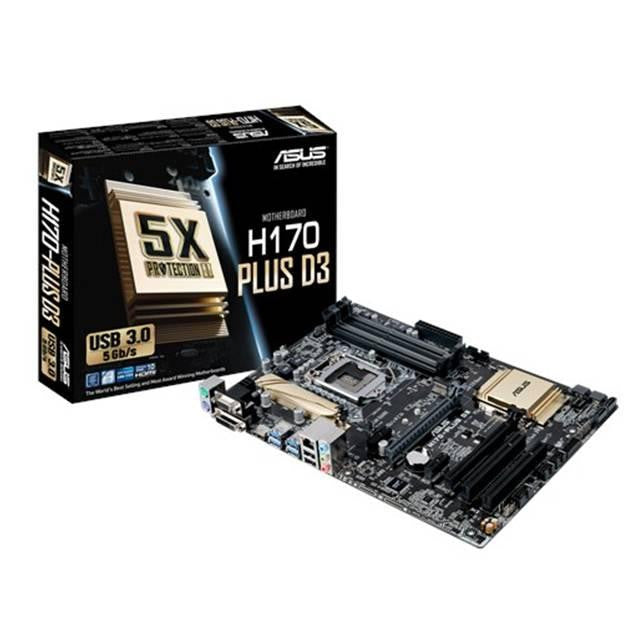

Asus H170-PLUS D3 LGA1151- Intel H170- DDR3- CrossFireX- SATA3&USB3.0- M.2- A&GbE- ATX Motherboard
Specifications
- Mfr Part Number: H170-PLUS D3
-
CPU: LGA1151
- Supports the 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H170 Express
- Memory: 4x DDR3-1866(OC)/ 1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0/2.0 x16 Slot (one max. at x4, compatible with PCIe x1 and x4 devices), 2x PCI-Express 3.0/2.0 x1 Slots, 2x PCI Slots
- Multi-Graphics: Supports AMD CrossFireX Technology
-
Storage:
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 1x M.2 Port (type 2242/ 2260/ 2280), Support Both SATA & PCI-Express Mode
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
-
LAN: Realtek RTL8111H Gigabit Ethernet Controller
- Ports: 8x USB 3.0/2.0 Ports (4 rear, 4 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: ATX, 12.0 x 8.6 inch / 30.5 x 21.8 cm
