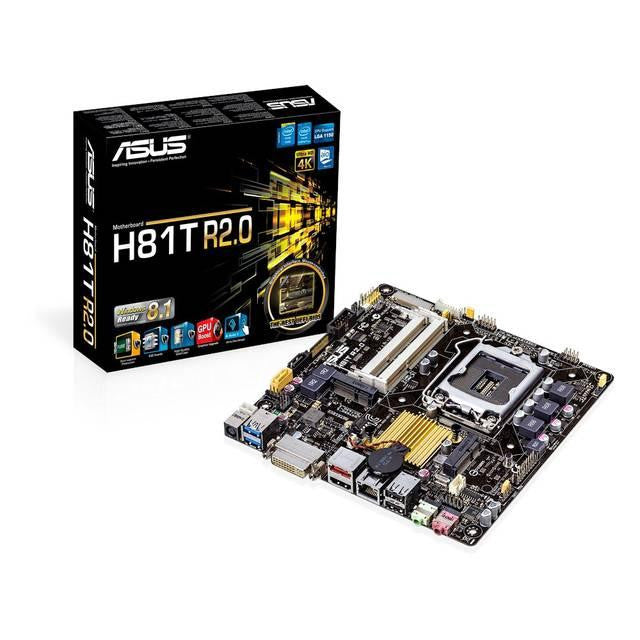

Asus H81T R2.0-CSM LGA1150- Intel H81- DDR3- SATA3&USB3.0- A&GbE- Mini-ITX Motherboard
Specifications
- Mfr Part Number: H81T R2.0/CSM
-
CPU: LGA1150
- Supports 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 22nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H81 Express
- Memory: 2x DDR3-1600/ 1333/ 1066 SODIMM Slots, Dual Channel, Max Capacity of 16GB
- Slots: 2x mini-PCI-Express 2.0 x1 Slots (one full-length, black; half-length, black)
- SATA: 1x SATA3 Port, 1x mini-SATA3 Port, 1x SATA2 Port, 1x eSATA2 Port
- Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- LAN: Realtek 8111G Gigabit Ethernet Controller
- Ports: 2x USB 3.0 Ports, 7x USB 2.0 Ports (2 rear, 5 at mid-board), 1x DVI-I Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x SATA Power Connector, 1x 2-pin internal DC Power Connector
- Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
