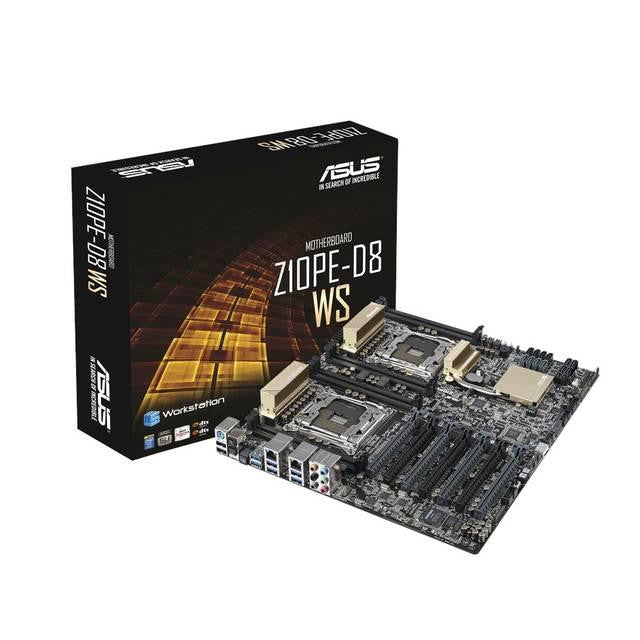

ASUS Z10PE-D8 WS LGA2011-v3- Intel C612 PCH- DDR4- 4-Way CrossFireX & 4-Way SLI- SATA3&USB3.0- M.2&SATA Express- A&V&2GbE- EEB Server Motherboard
Specifications
- Mfr Part Number: Z10PE-D8 WS
-
CPU: LGA 2011-v3
- Supports Intel Xeon E5-2600 v3 Processors
- QPI up to 6.4/ 8.0/ 9.6 GT/s
-
Chipset: Intel C612 PCH
- Memory: 8x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad-Channel, Max Capacity of 512GB
- Slots: 4x PCI-Express 3.0/2.0 x16 slots (run at Dual x16/x16 or Quad x8/x8/x8/x8), 2 x PCI-Express 3.0/2.0 x16 slots, 1 x PCI-Express 3.0/2.0 x16 slot (runs at x8)
- Multi-Graphics: Supports AMD 4-Way CrossFireX and NVIDIA 4-Way SLI Technology
-
Storage:
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10; 2x SATA Express Ports
- M.2: 1x M.2 Port, (type 2260/ 2280/ 22110), Support SATA
- Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC
- Video: Aspeed AST2400 Graphics w/ 32MB VRAM Video Memory
- LAN: 2x Intel i210-AT Gigabit Ethernet Controllers
- Ports: 10x USB 3.0 Ports (6 rear, 4 via headers), 4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard/Mouse Combo Port, 2x RJ45 LAN Ports, 1x Optical S/PDIF Out, Audio I/O Jacks
- Power Connector: 1x 6pin EATX 12V_3 Power Connector, 1x 24pin EATX Power Connector, 2x 8pin ATX 12V Power Connectors
- Form Factor: EEB, 12.0 x 13.0 inch / 30.50 x 33.02 cm
