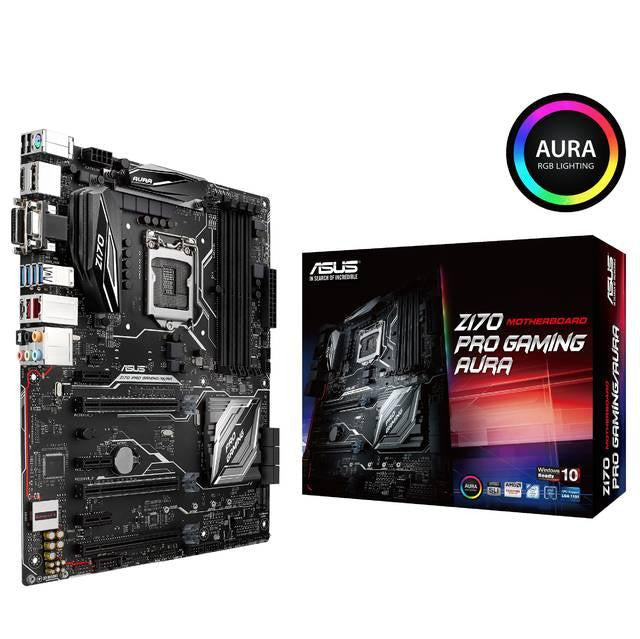

Asus Z170 PRO GAMING-AURA LGA1151- Intel Z170- DDR4- Quad CrossFireX & Quad SLI- SATA3&USB3.1- M.2- A&GbE- ATX Motherboard
Specifications
- Mfr Part Number: Z170 PRO GAMING/AURA
-
CPU: LGA1151
- Supports the 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel Z170 Express
- Memory: 4x DDR4-3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3100(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0/2.0 x16 Slots (Single at x16 or dual at x8), 1x PCI-Express 3.0/2.0 x16 Slot (run at x4), 3x PCI-Express 3.0/2.0 x1 Slots
- Multi-Graphics: Supports AMD Quad-GPU CrossFireX, 3-Way CrossFireX and NVIDIA Quad-GPU SLI, 2-Way SLI Technology
-
Storage:
- SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 1x M.2 Port (type 2242/ 2260/ 2280/ 22110), Support Both SATA & PCI-Express Mode
- Audio: SupremeFX 8-Channel High Definition Audio CODEC
- LAN: Intel I219V Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Ports (1 Type A, 1 Type C), 6x USB 3.0/2.0 Ports (4 rear, 2 at mid-board), 8x USB 2.0/1.1 Ports (2 rear, 6 at mid-board), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI Port, 1x DisplayPort, 1x HDMI Port, 1x RJ45 LAN Port, 1 x Optical S/PDIF out, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
