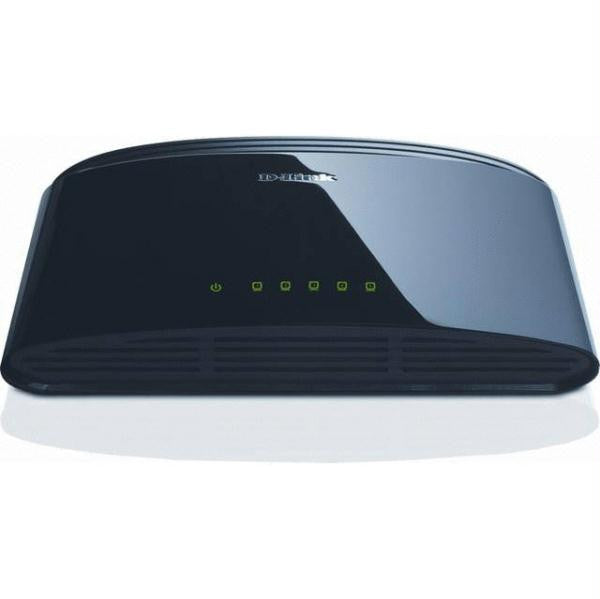

D-Link DES-1005E 5-Port 10-100 Unmanaged Desktop Switch
Specifications
- Mfr Part Number: DES-1005E
- Features:
- Inexpensive Fast Ethernet solution for home/SOHO
- 5x 10/100 Mbps Fast Ethernet ports
- Auto MDI/MDI-X Crossover for all Ports
- Store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow control
- Plug-and-play installation
- RoHS compliant
- Standards:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 Nway autonegotiation
- IEEE 802.3x Flow control
- Number of Ports: 5x 10/100 Mbps Fast Ethernet ports
- Protocol: CSMA/CD
- MAC Address Table: 2K entries per device
- Switch Fabric: 1.0Gbps
- Packet Buffer Memory: 64KB per Device
- Transmission Method: Store-and-forward
- Network Data Transfer Rate:
- Ethernet: 10Mbps (Half-duplex)
- Ethernet: 20Mbps (Full-duplex)
- Fast Ethernet: 100Mbps (Half-duplex)
- Fast Ethernet: 200Mbps (Full-duplex)
- Network Cables: 10BASE-T- UTP CAT 3/4/5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.); 100BASE-TX- UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.)
- LED: Per port- Link/Activity; Per device- Power
- Certifications: FCC Class B, ICES-003 class B, CE class B, C-Tick class B, VCCI class B, cUL, CB
- Power Consumption:
- Power on (Standby): DC input- 0.6 watts; AC input- 1.4 watts
- Maximum: DC input- 3.3 watts; AC input- 5.2 watts
- Power Supply: DC 5V/1.2A
- Dimensions(WxDxH): 5.0 x 3.3 x 1.2 inch / 125.3 x 83.4 x 29.1 mm
