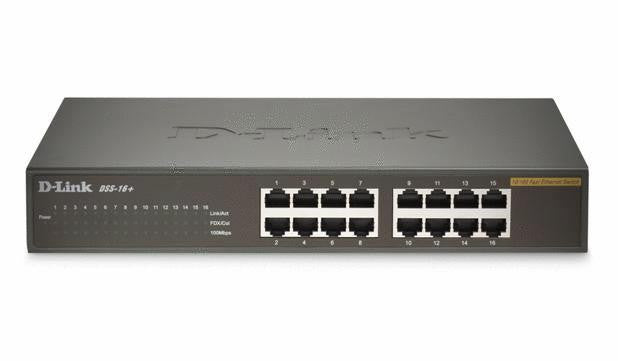

D-Link DSS-16+ 16-Port 10-100 Desktop Switch
Specifications
- Mfr Part Number: DSS-16+
- Features:
- Add More Computers or Other Ethernet-based Devices to the Network
- No Software or Configuration Required
- Delivers up to 200Mbps Throughput per Port in Full-Duplex Mode
- Standards:
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3 Nway Auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS Prioritization
- Ports: 16x 10/100BASE-TX
- MAC Address Table: 8 K
- Switch Fabric: 3.2 Gbps
- Buffer Memory: 160 KB
- Transmission Method: Store-and-Forward
- Network Data Transfer Rate:
- Ethernet (Half-duplex): 10Mbps
- Ethernet (Full-duplex): 20Mbps
- Fast Ethernet (Half-duplex): 100Mbps
- Fast Ethernet (Full-duplex): 200Mbps
- Interface Options:
- RJ-45: 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-through or Crossover cables
- LEDs:
- Per Unit: Power
- Per Port: Activity/Link
- Duplex/Collision Speed
- Minimum System Requirements:
- Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet
- CAT5 Ethernet Cable
- Network Interface Card for Each Computer
- CD-ROM Drive to View Product Documentation
- Max Power Consumption: 6 W
- Power Supply: 100 ~ 240 VAC, 50/60 Hz Internal Power Supply
- Certifications: FCC Class A
- Dimensions (WxDxH): 11.1 x 7.1 x 1.7 inch
- Weight: 4.2 lbs
- Package Contents: 16-Port 10/100 Desktop Switch; Rackmount Kit; CD-ROM with Product Documentation; CD-ROM with Special Offers
