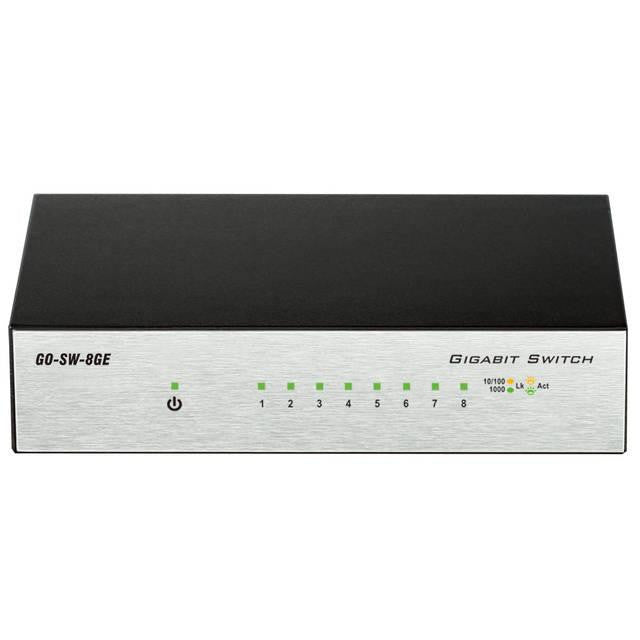

D-Link GO-SW-8GE 8-Port Unmanaged Gigabit Desktop Switch

Specifications

• Mfr Part Number: GO-SW-8GE
• Features:
  • Connect - Add up to eight devices to your network
  • Gigabit Speed - Gigabit Ethernet ports for superior device connectivity
  • Plug-n-Play Installation - Connect your devices in seconds, just plug and play
  • D-Link Green - Providing energy savings, reduced heat and longer product life
  • Metal Casing - Durable and high-quality protection
• Ports: 8x Gigabit Ethernet Ports
• Standards:
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
• Switching Fabric: 16Gbps
• Data Transfer Rates:
  • Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
• Packet Filtering/Forwarding Rates:
  • Ethernet: 14,880 pps
  • Fast Ethernet: 148,800 pps
  • Gigabit Ethernet: 1,488,000 pps
• Network Cables:
  • 10BASE-T: UTP CAT 3, 4, 5, 5e (100 m max); EIA/TIA-586 100-ohm STP (100 m max)
  • 100BASE-TX, 1000BASE-T: UTP CAT 5, 5e (100 m max); EIA/TIA-568 100-ohm STP (100 m max)
• Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
• LED Indicators:
  • Per Port: Link/ Activity/ Speed
  • Per Device: Power
• Switching Method: Store-and-forward
• MAC Address Table: 8K entries
• RAM Buffer: 128KB per device
• Jumbo Frames: 9,216 Bytes
• QoS: 4 Queues, strict mode
• DC Input: External 5 V/1 A Level "V" Power Adapter
• Power Consumption:
  • DC Input: 0.59 Watts (Power On - Standby), 3.48 Watts (Maximum)
  • AC Input: 1.5 Watts (Power On - Standby), 5.4 Watts (Maximum)
• Heat Dissipation: AC input - 5.22 BTU/h (Standby), 18.25 BTU/h (Maximum)
• MTBF: 522,270 hours
• Certifications: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
• Dimensions: 5.03 x 3.14 x 1.10 inch / 128.0 x 80.0 x 28.0 mm
• Weight: 15.52 ounces / 440.0 g
• RoHS Compliant
