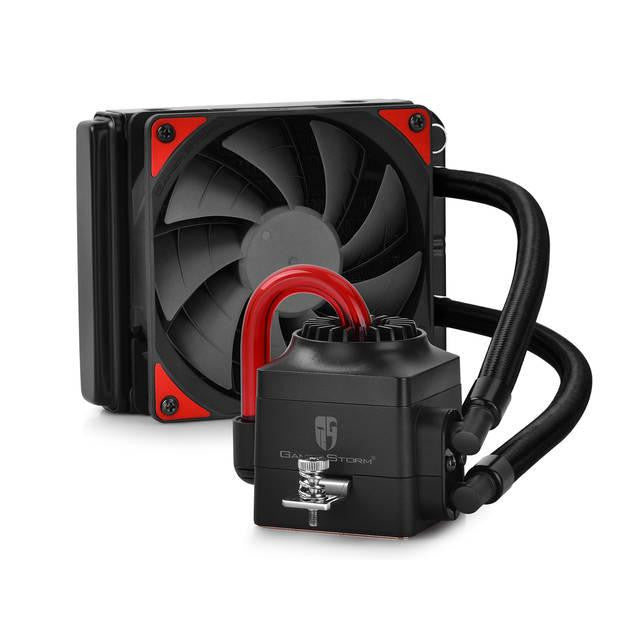

DEEPCOOL CAPTAIN 120 EX 120mm CPU Liquid Cooler for LGA2011-V3-2011-1366-1156-1155-1151-1150 & AMD Socket FM2+-FM2-FM1-AM3+-AM3-AM2+-AM2
Specifications
- Mfr Part Number: CAPTAIN 120 EX
-
Features:
- Upgraded high-density water microchannel with powerful self-governed circulation system, 10% more efficient heat dissipation
- Amazing glass design &patented visual external-circulation system
- Updated tooling free installation solution, solid 100% metal material clip
- Unique silent TF 120 double-blade fan to offer a higher air pressure for radiator, more efficient to take heat away
- Upgraded anti-explosion rubber tube, anti-corrosion, crush resistance&Thermostable material
- Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow & bigger delivery head
- Long lifetime ceramic bearing with MTBF 120,000 hours
- Crazy steam punk appearance &the unique reactor-style pump housing
- Bionic red LED breathing light lightening up while operating
-
Socket Type:
- Intel Socket: LGA2011-v3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
- AMD Socket: FM2+/ FM2/ FM1/ AM3+/ AM3/ AM2+/ AM2
-
CPU Applications:
- Intel: High End Desktop i7, Core i7 Extreme/i7/i5/i3, Pentium G, Celeron G
- AMD: APU A10/A8/A6/A4, FX 8/6/4-Core, Phenom II X6/X4/X3/X2, Phenom X4/X3/X2, Athlon II X4/X3/X2, Athlon X4/X2, Athlon, Sempron, Business Class
-
Radiator:
- Material: Aluminum
- Dimensions: 154.0 x 120.0 x 27.0 mm
-
Pump:
- Speed: 2200 ± 10% RPM
-
Rated Voltage: 12V DC
- Operating Voltage: 6 ~13.8 VDC
- Current: 0.16 ± 15% A
- Connector: 3 pin
- Life Expectancy: 120,000 hours
- Power Consumption: 1.92 W
-
Fan:
- Speed: 500 ± 200 ~ 1800 ± 10% RPM
-
Air Flow: 76.52 CFM (Max)
-
Air Pressure: 3.31 mmH2O (Max)
- Noise Level: 17.6 ~ 31.3 dB(A)
- Rated Voltage: 12V DC
-
Rated Current: 0.12 ± 10% A (Max)
- Bearing Type: Hydro Bearing
- Connector: 4 pin
- Life Expectancy: 50,000 hours
- Power Consumption: 1.44 W
- Dimensions: 120.0 x 120.0 x 25.0 mm
- Dimensions: 92.5 x 93.0 x 85.0 mm (Main system)
- Weight: 894.0 ± 10.0 g
