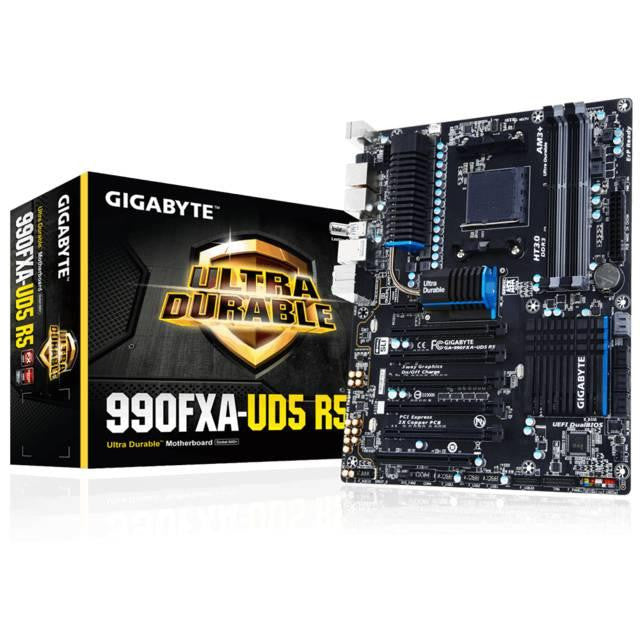

GIGABYTE GA-990FXA-UD5 R5 Socket AM3+- AMD 990FX- DDR3- 3-Way CrossFireX&3-Way SLI- SATA3&USB3.0- A&GbE- ATX Motherboard
Specifications
- Mfr Part Number: GA-990FXA-UD5 R5
-
CPU: Socket AM3+
- Supports AMD AM3+ FX Processors
- Supports AMD AM3 Phenom II / AMD Athlon II Processors
- Hyper Transport Bus up to 5200 MT/s
- Chipset: North Bridge AMD 990FX & South Bridge SB950
- Memory: 4x DDR3-2000(OC)/ 1866/ 1600/ 1333/ 1066 DIMMs, Dual Channel, Max capacity up to 32GB
- Slots: 5x PCI-Express 2.0 x16 Slots (one runs at x8, two run at x4), 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
- Multi-Graphics: Support for 2-Way/ 3-Way AMD CrossFire/ NVIDIA SLI technology
- SATA: 8x SATA3 Ports (two Support RAID 0, 1; six Support RAID 0, 1, 5, 10, JBOD); 2x eSATA3 Ports, Support RAID 0, 1
- Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC
- LAN: Realtek Gigabit Ethernet Controller
- Ports: 14x USB 2.0 Ports (8 rear, 6 via headers), 4x USB 3.0 Ports (2 rear, 2 via header), 1x PS/2 keyboard/mouse Port, 2x eSATA3 Ports, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: ATX, 30.5 x 24.4 cm
