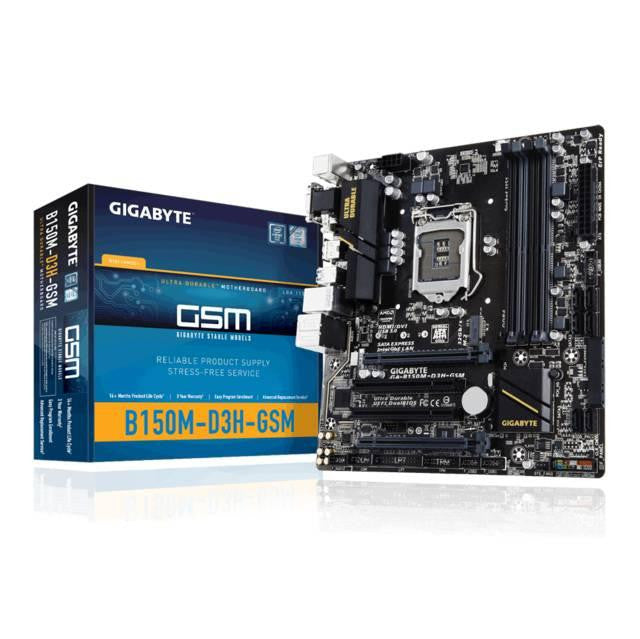

GIGABYTE GA-B150M-D3H-GSM LGA1151- Intel B150- DDR4- 2-Way CrossFireX- SATA3&USB3.0- M.2&SATA Express- A&GbE- MicroATX Motherboard
Specifications
- Mfr Part Number: GA-B150M-D3H-GSM
-
CPU: LGA1151
- Supports Intel Core i7/ i5/ i3/ Pentium / Celeron Processors
- Chipset: Intel B150 Express
- Memory: 4x DDR4 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x4), 2x PCI Slots
- Multi-Graphics: Supports 2-Way AMD CrossFireX Technology
-
Storage:
- SATA: 6x SATA3 Ports, 1x SATA Express Port
- M.2: 1x M.2 Port
- Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC, Supports S/PDIF Output
- LAN: Intel Gigabit Ethernet Controller
- Ports: 6x USB 3.0/2.0 Ports (4 rear, 2 via headers), 6x USB 2.0/1.1 Ports (2 rear, 4 via headers), 1x PS/2 Keyboad/Mouse Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: MicroATX, 24.4 x 22.5 cm
