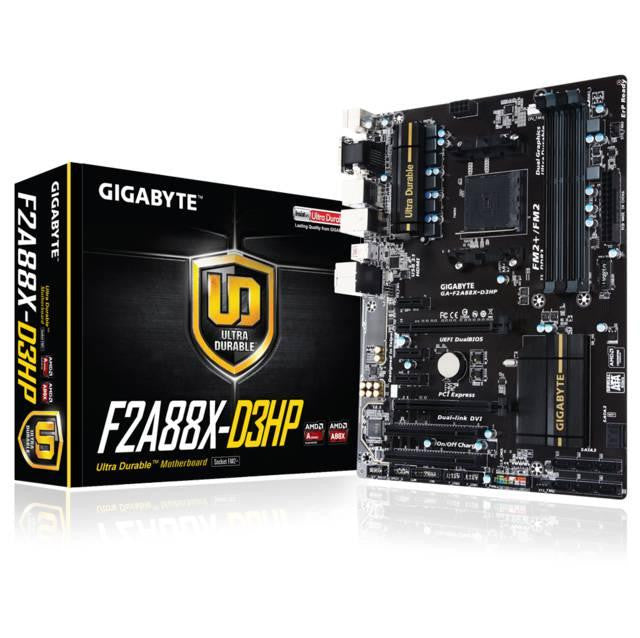

GIGABYTE GA-F2A88X-D3HP Socket FM2+- AMD A88X- DDR3- 2-Way CrossFireX- SATA3&USB3.1- A&GbE- ATX Motherboard
Specifications
- Mfr Part Number: GA-F2A88X-D3HP
-
CPU: Socket FM2+
- Supports AMD A Series Processors
- Supports AMD Athlon Series Processors
- Chipset: AMD A88X
- Memory: 4x DDR3-2133/ 1866/ 1600/ 1333 DIMM Slots, Dual Channel, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots, 2x PCI Slots
- Multi-Graphics: Supports AMD 2-Way CrossFireX Technology
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10 and JBOD
- Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
- LAN: Realtek Gigabit Ethernet Controller
- Ports: 2x USB 3.1 Ports (1 Type-A, 1 Type-C), 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: ATX, 30.5 x 23.5 cm
