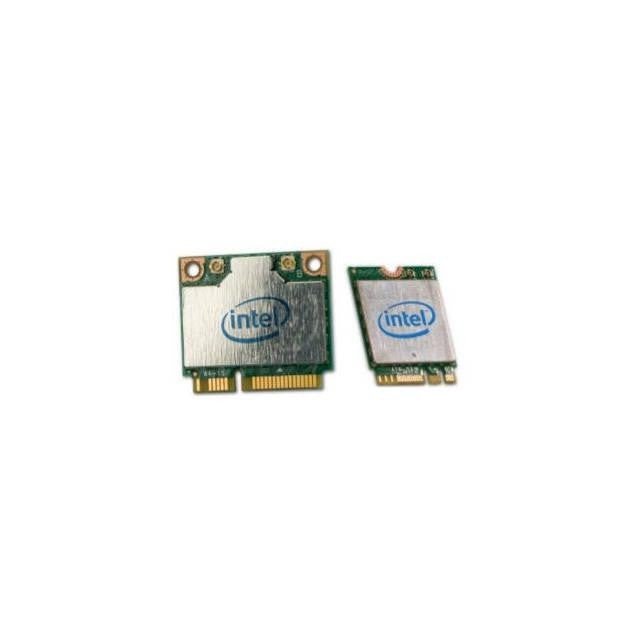

Intel Network 7260.HMWG.R Dual Band Wireless-AC 7260 2x2 + Bluetooth 4.0 HMC PCI-Express Wireless Adapter

Specifications

• Mfr Part Number: 7260.HMWG.R

• Host Interface: Mini PCI Express

• Wireless Transmission Speed: 867 Mbps

• ISM Maximum Frequency: 2.40 GHz

• UNII Maximum Frequency: 5 GHz
• Wi-Fi Alliance: Wi-Fi Certified for 802.11ac, Wi-Fi Certified a/b/g, Wi-Fi Certified, WMM, WPA, WPA2, and WPS, WPS 2.0, Protected Management Frames, Wi-Fi Direct for peer to peer device connections

• IEEE WLAN Standard: IEEE 802.11a/b/g/n, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

• Architecture: Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes

• Roaming: Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac)

• Bluetooth: Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)

• Diversity: Suported

• Radio On/Off Control: Supported in both hardware and software

• LED Output: On/Off

• Operating Systems: Microsoft Windows 7, Microsoft Windows 8, Linux (most features not available on Linux)

• Security:
  • Authentication: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
  • Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2

  • Encryption: 64-bit and 128-bit WEP, AES-CCMP, TKIP

  • Wi-Fi Direct Encryption and Authentication: WPA2, AES-CCMP

  • Product Safety: UL, C-UL, CB (IEC 60950-1)

  • Management Frame Protection: 802.11w (WFA-Protected Management Frames)

• Dimensions (WxDxH): 30.0 x 2.40 x 26.8 mm Max (Top Side) / 1.35 mm Max (Bottom Side) Single Side

• Weight: 3.0 g
