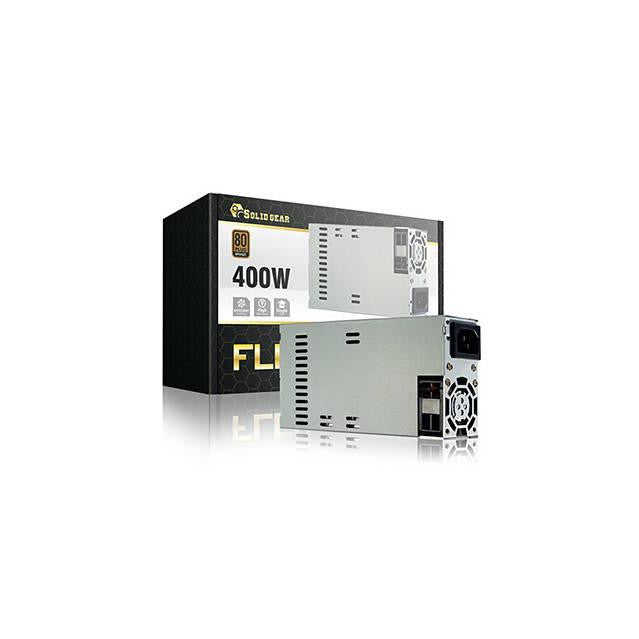

Solid Gear FLEX Series SDGR-FLXB400 400W 80 PLUS Bronze Mini-ITX & FLEX ATX Power Supply

Specifications

• Mfr Part Number: SDGR-FLXB400
• Features:
  • Supports Intel & AMD Socket
  • Low ripple and noise
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • Short Circuit protection
  • Thermal overload cut-off protection
  • Stained SECC Steel Material
  • Built-in 40mm cooling fan
  • 15" long cables
  • 80+ Bronze APFC
• Type: Mini ITX & FLEX ATX
• Maximum Power: 400W
• Input:
  • Voltage: 115-230V
  • Current: 100A max cold start
  • Frequency Range: 47/63Hz
• Output Ripple: noise - 1%
• Fan: 1x 40mm Cooling Fan
• Output: +3.3V @ 6A, +5V @ 6A, +12V @ 28A, -12V @ 0.3A, +5Vsb @ 2.0A
• Connectors: 1x 20+4pin Main Connector, 1x 4+4 pin CPU Connector, 2x 4pin CPU Connectors, 1x 6+2pin PCI-Express Connector, 3x SATA Connectors, 2x 4pin Periphera Connectors, 1x Floppy Connector
• MTBF (Full Load): >20,000 Hours
• Energy Star Stand By: < 1W
• Dimensions (WxDxH): 3.250 x 6.000 x 1.625 inches
• Weight: 2.5 lbs
