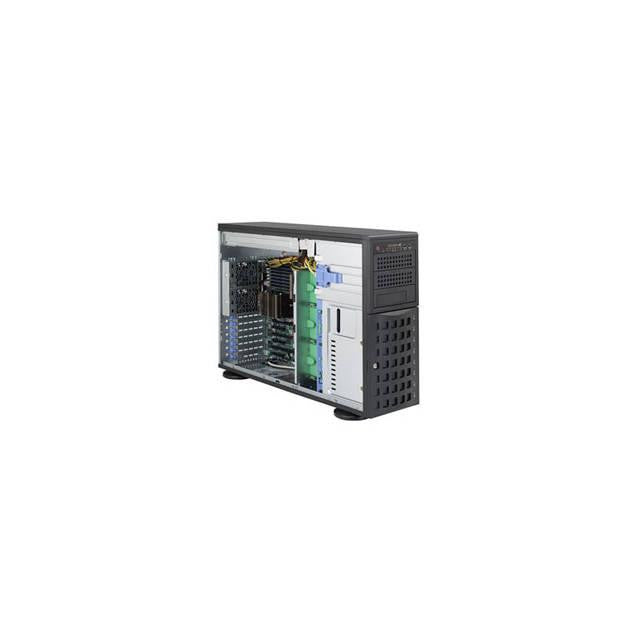

Supermicro SuperChassis CSE-745BTQ-R1K28B-SQ 1280W 4U Rackmount-Tower Server Chassis (Black)
Specifications
- Mfr Part Number: CSE-745BTQ-R1K28B-SQ
- Case Type: 4U Rackmount / Tower
- Color: Black
- M/B Type: EATX, ATX; Supports Motherboard Size up to 13.68 x 13.00 inch
- Processor Surpport: Dual, Single Intel/AMD Processors
- Drive Bays: 8x 3.5" Hot-swap SAS/SATA Drive Bays, 2x 5.25" Peripheral Drive Bays, 1x 5.25” Peripheral Drive Bay (fits 1x 3.5” device)
- Expansion Slots: 7x PCI Expansion Slots
- Backplane: SAS/SATA Hard Drive Backplane w/ SES2
- Cooling System: 2x 2800RPM Hot-swap Middle Cooling Fans, 1x 2700RPM Hot-swap Rear Exhaust Fan
-
Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard Drive Activity, 2x Network Activity, System Information, Power Fail
- Ports: 2x USB 3.0 Ports
- Power Supply: 1280W 80 PLUS Platinum Certified Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
- Dimensions (WxDxH): 7.0 x 25.5 x 17.2 inch / 178.0 x 648.0 x 437.0 mm
- Gross Weight: 62.0 lbs / 28.0 kg
- Chassis Only. CPU, MB, HD, memory and other parts are not included.
