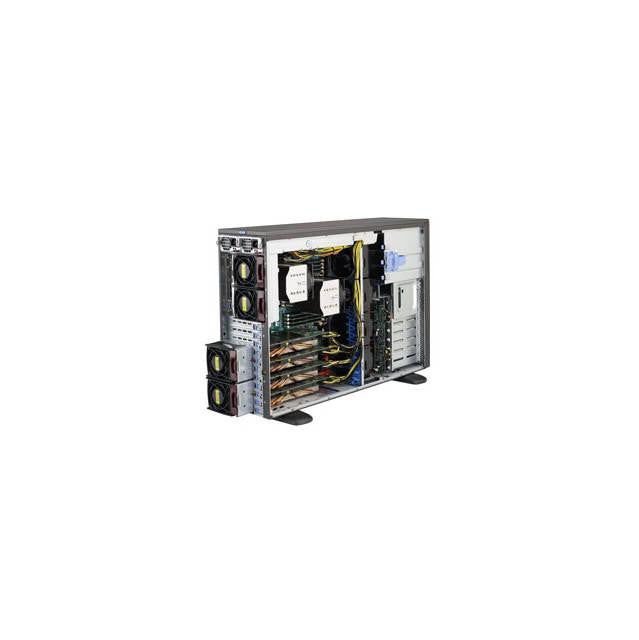

Supermicro SuperServer SYS-7048GR-TR Dual LGA2011 2000W 4U Rackmount-Tower Server Barebone System (Dark Gray)
Specifications
- Mfr Part Number: SYS-7048GR-TR
- Motherboard: Super X10DRG-Q
-
Processors: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Cache up to 45MB
- QPI up to 9.6 GT/s
- Support up to 160W TDP
- Chipset: Intel C612 Express
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 5x PCI-Express 3.0 x16 Slots (four double-width; one runs at x8), 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 2.0 x8 Slot (runs at x4)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- Audio: 7.1 HD Audio with optical S/PDIF
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel I350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
- Drive Bays: 8x 3.5" Hot-swap SATA/SAS Drive Trays, 3x 5.25" Peripheral Drive Bays, 1x 3.5" fixed drive bay
- Backplane: SAS/SATA Hard Drive Backplane with SES2
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 4U Rackmount / Tower
- Power Supply: 2000W 80 PLUS Platinum Certified Redundant Power Supplies with I2C & PMBus
- System Cooling: 4x 92x38mm 4-pin PWM Middle Cooling Fans, 2x 80x38mm 4-pin PWM Rear Exhaust Fans, 2x Active Heatsink with Optimal Fan Speed Control
-
Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
- Color: Dark Gray
- Dimensions (WxDxH): 7.0 x 26.5 x 18.2 inch / 178.0 x 673.0 x 462.0 mm
- Gross Weight: 62.0 lbs / 28.1 kg
- RoHS Compliant
