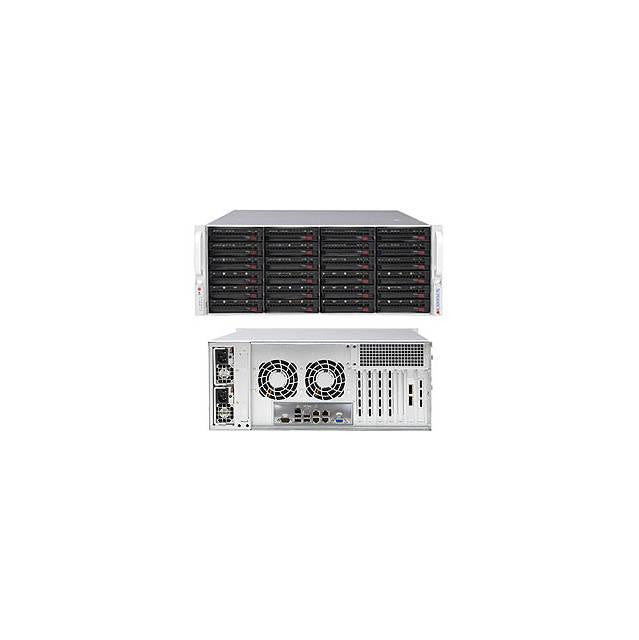

Supermicro SuperStorage Server SSG-6048R-E1CR24H Dual LGA2011 920W 4U Rackmount Server Barebone System (Black)
Specifications
- Mfr Part Number: SSG-6048R-E1CR24H
- Motherboard: Super X10DRH-iT
-
Processor: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Processors
- Support up to 18 Cores
- Cache up to 45 MB
- QPI up to 9.6 GT/s
- Support up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots; Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots
- SATA: SATA3 Support RAID 0, 1, 5, 10
- SAS: SAS3 via LSI 3108 AOC; HW RAID
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel X540 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
- Drive Bays: 24x Hot-swap 3.5" SAS3/SATA3 Drive Bays
- Backplane: SAS3/SATA3 Single Expander Per Backplane
- Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x Type A USB Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 4U Rackmount
- Power Supply: 920W 80 PLUS Platinum Certified High-efficiency AC-DC Redundant power Supplies with PMBus and I2C
- System Cooling: 2x 80mm Hot-swap Rear Exhaust Cooling Fans, Redundant Cooling
-
Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
- Color: Black
- Dimensions (WxDxH): 17.2 x 26.5 x 7.0 inch / 437.0 x 673.0 x 178.0 mm
- Weight: 55.0 lbs / 24.9 kg
- RoHS Compliant
